Automatic HDPE PP Double Wall Corrugated Pipe Production Line

Huashida's Double Wall Corrugated Pipe Production Line is designed for high-speed, efficient production of corrugated pipes using high-density polyethylene (HDPE) or polypropylene (PP). The advanced water-cooling system supports rapid pipe forming and stable continuous production.

The line can be configured to produce single-wall and double-wall corrugated pipes for different market requirements. The pipes feature low weight, high impact strength, corrosion resistance, and excellent durability under varying environmental conditions.

Typical applications include municipal sewage systems, stormwater drainage, underground cable protection, agricultural irrigation, and construction projects.

Advantages of the New Automatic HDPE/PP Double Wall Corrugated Pipe Production Line:

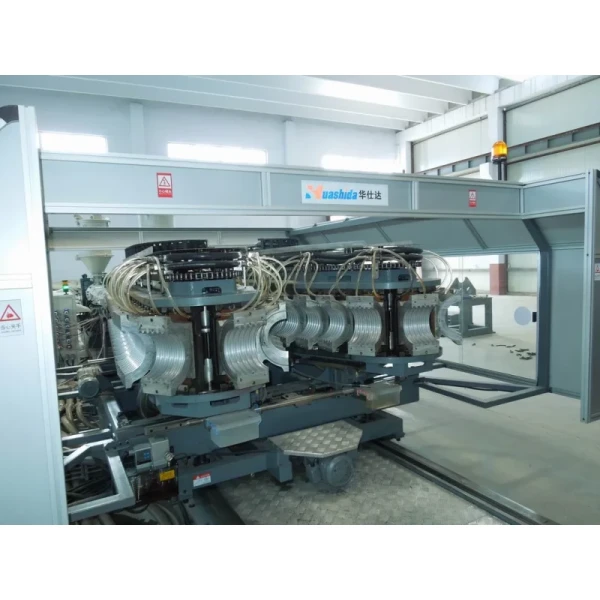

→Higher production speed: mold adopts continuous circumferential pressure water cooling along the entire running track, delivering superior cooling effect. The output can be up to 3 times higher than models with air cooling or conventional water cooling
→Lower power consumption: the extruder is equipped with a buffered forced feeding zone, which greatly reduces power consumption of the main drive motor (by 30%)The screw features a large L/D ratio of 36:1, offering strong material adaptability and excellent plasticization effect.
→Mold Interchangeability: Molds for large and small production lines are fully interchangeable, facilitating production organization, reducing inventory, and shortening delivery time.
→Easier operation: No vertical adjustment of the forming machine platform is required, and module replacement is quick and convenient
→More stable and durable: The movement tracks of modules and water circuits are smoother. Cooling water lines adopt fixed connections, eliminating water seepage and equipment wear caused by frequent pipe plugging/unplugging, thus extending service life,Shorter flow channel in the die head results in lower pressure, reducing wear and prolonging the service life of the screw and die head.

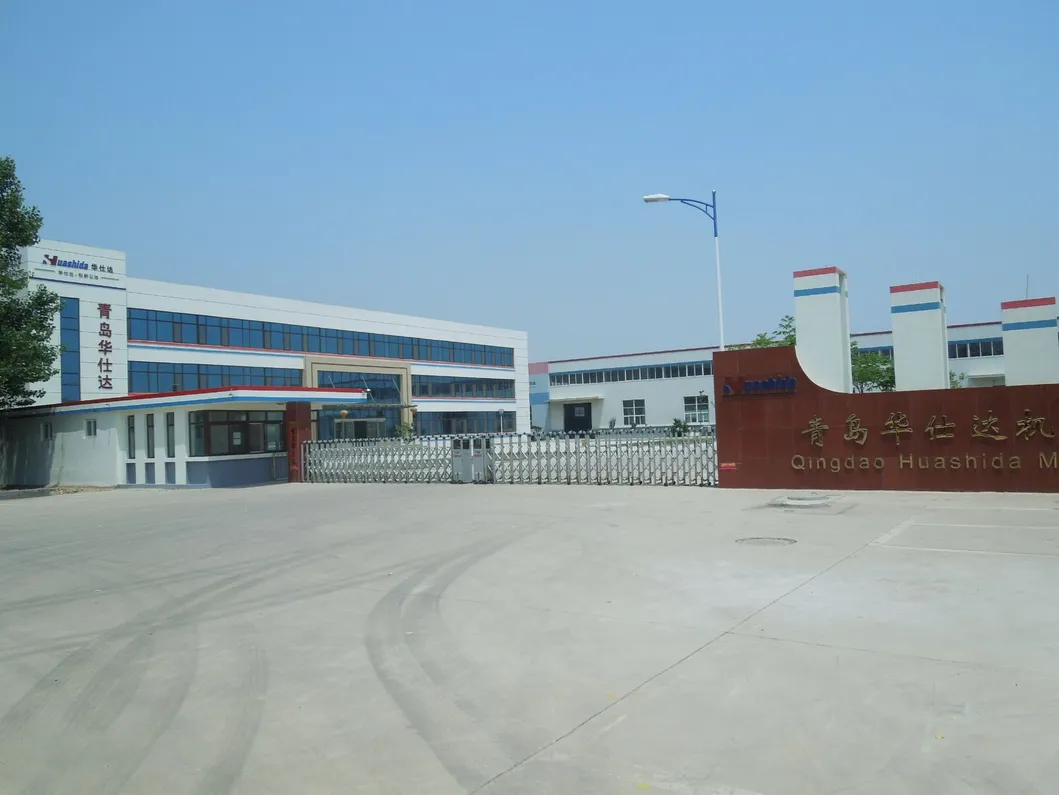

Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!
