HDPE Jacket Pipe Production Line Customized Diameter and Thickness
With the core technology of vacuum calibration, these pre-insulated pipes achieve precise diameter control and uniform pipe wall shaping. Equipped with efficient extrusion processes and an intelligent control system, the production line offers significant advantages including energy savings, reduced consumption, a high degree of automation, long service life, and low waste output. As a result, it has been widely adopted in municipal heating, gas transmission, water supply projects, and other industrial applications.
Product Parameters
| Style |
PE-110/500 |
PE-655/1380 |
PE-960/1860 |
PE-1155/2200 |
| Main Extruder |
SJ-75/33 |
SJ-120/33 |
SJ-150/33 |
SJ-150/33 |
| Pipe diameter |
Φ110-600mm |
Φ655-1380mm |
Φ960-1860mm |
Φ1155-2200mm |
| Capacity |
250-350kg/h |
700-900kg/h |
1000-1200kg/h |
1350kg/h |
| Installed power |
160kw |
480kw |
580kw |
650kw |
| Length |
26m |
36m |
45m |
45m |
Equipment Composition
- 1 set Vacuum loader
- 1 set Hopper dryer
- 1 set High-efficiency single screw extruder
- 1 set Vacuum calibration table
- 1 set Water spraying tank
- 1 set Hauling machine
- 1 set Cutting machine
- 1 set Discharging Frame
HDPE Jacket Production Process
Vacuum feeding PE granule → hot air dry material → extrusion plasticizing → mold shaping → Vacuum sizing → water cooling → Pulling out → cutting pipe → carrier laying - off pipe
Qingdao Huashida Machinery Co., Ltd was established in 2003. Since its inception, Huashida has focused on plastic polyurethane insulation pipe production line, 3LPE anticorrosion pipe production line, large diameter underground pipe production line and plastic pipe joints for 20 years. We always attach great importance to research and development, collaborating closely with Beijing University of chemical technology, Qingdao university of technology and scientific research institutions. By absorbing advanced technology home and abroad, after 22 years of endeavor we now rank one of the top 3 manufacturers in the industry in China. Huashida machines have been well received in Saudi Arabia, Kazakhstan, Uzbekistan, United Arab Emirates, Turkey, Russia, etc.

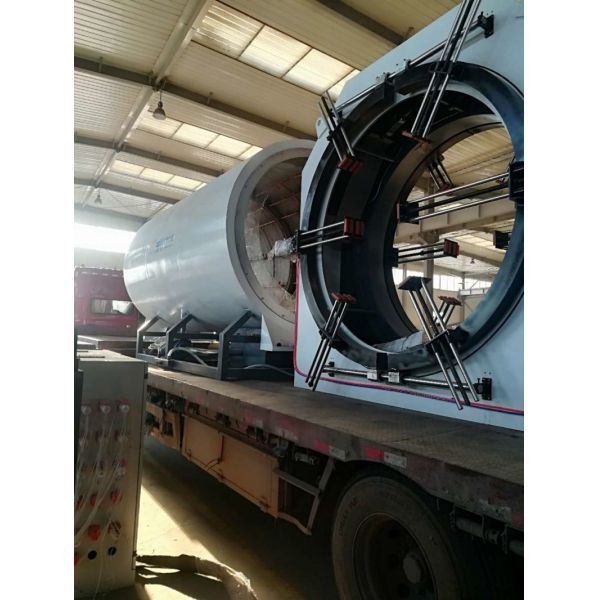

Shipment
