PE series vacuum calibrating method pre-insulated pipe outside casing extrusion line

Place of Origin : Qingdao ，China

Customized : Customized

Brand Name : HSD

Model Number : HSD

MOQ : 1

After-sales Service : Technical Service with Free,Training The Workers

Supply Ability : 60sets/year

Delivery Time : 90 days

Condition : New

Price : US$100,000.00 - 2,000,000.00

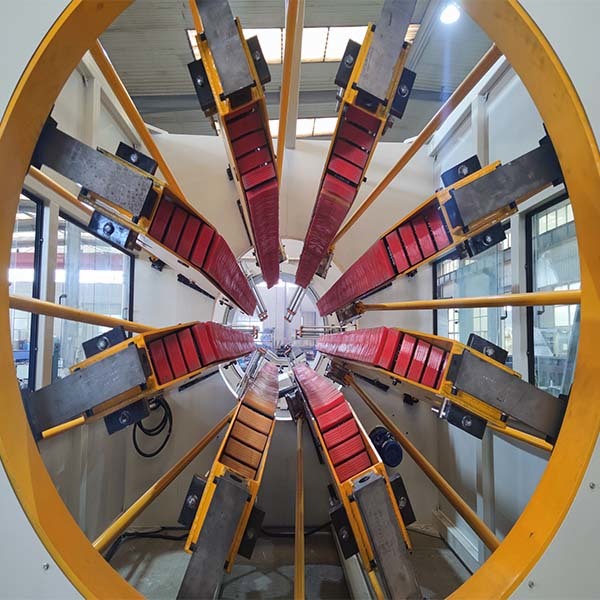

Cutting Method : Dust-Free Planetary Cutting

Certification : ISO9001:2008, QS

Specification : 110-2200mm

Payment Terms : L/C,T/T,Western Union

Raw Material : PE

Transmission Type : Rigid

Contact Now

PE Series Vacuum Calibrating Method Pre-Insulated Pipe Outside Casing Extrusion Line
Product Overview

The PE-Vacuum Calibration Insulation Pipe Production Line is advanced machinery designed for manufacturing pre-insulated pipes used in energy-saving trenchless pipeline installations. These pipes feature rigid polyurethane foam (PUF) insulation within a protective outer casing, making them ideal for heating networks with a working pressure of 1.6 MPa and water temperatures up to 403°K (130°C), with short-term tolerance up to 423°K (150°C).

Pipe Structure Components
  • Carrier Pipe: Steel or galvanized steel
  • Insulation Layer: Polyurethane foam (PUF)
  • Outer Casing: High-density polyethylene (HDPE) for underground installations or galvanized steel for above-ground applications

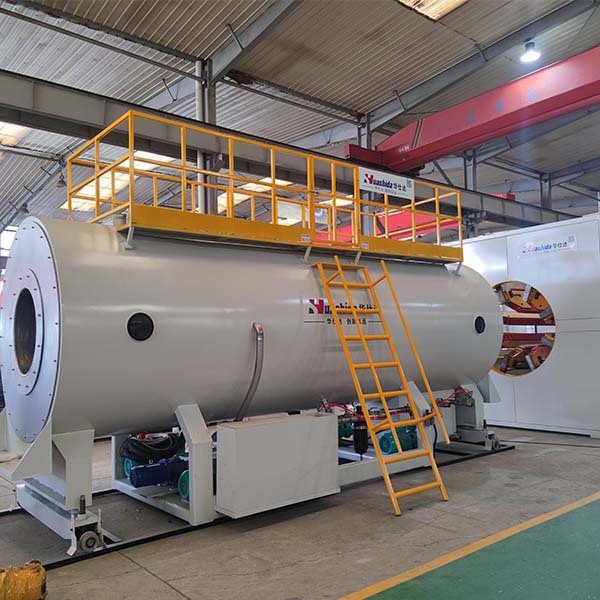

PE series vacuum calibrating method pre-insulated pipe outside casing extrusion line PE series vacuum calibrating method pre-insulated pipe outside casing extrusion line PE series vacuum calibrating method pre-insulated pipe outside casing extrusion line
Technical Specifications
Production Line Parameters
  • Steel pipe range: 60mm-2000mm
  • Used materials: ISO (isocyanate), POLY (premixed polyether polyols), PE
Model Specifications
Model Host Model Pipe Specifications Production Capacity Total Installed Capacity Production Line Length
PE-110-550 SJ-75/33 ∮110-∮550mm 250-350kg/h 160KW 34M
PE-450/960 SJ-90/33 ∮450-∮960mm 400-600kg/h 380kw 36m
PE-850/1380 SJ-120/33 ∮850-∮1380mm 700-900kg/h 440kw 40m
PE-960/1680 SJ-150/33 ∮960-∮1680mm 1200-1300kg/h 580kw 48m
PE-1155/2000 SJ-120/38 ∮1155-∮2000mm 1200-1600kg/h 560kw 48m

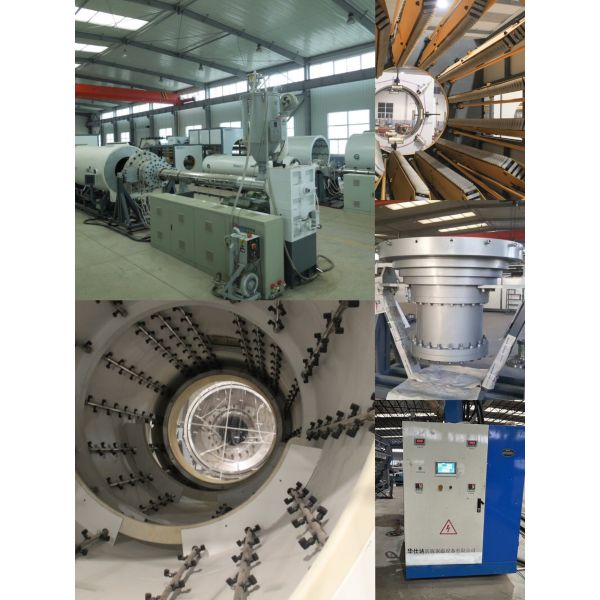

PE series vacuum calibrating method pre-insulated pipe outside casing extrusion line
Manufacturer Profile

Qingdao Huashida Machinery Co., LTD is a manufacturer with 21 years of production experience specializing in plastic pipe machines, municipal pipe machines, pipe insulation & anticorrosion machines, and pipe jointing & anticorrosion materials.

Main Product Lines
  • HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
  • Rigid pre-insulated pipe Production Line
  • Flexible pre-insulated pipe (PERT) production line
  • Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
  • Steel pipe derusting line
  • PE pressure pipe/Water Gas supply pipe production line
  • PP/PE plastic board/sheet/geomembrane production line
  • NBR PVC Thermal insulation tube/plate production line
  • Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun (extruder), PE PP welding rod
PE series vacuum calibrating method pre-insulated pipe outside casing extrusion line
Exhibition & Certifications
PE series vacuum calibrating method pre-insulated pipe outside casing extrusion line PE series vacuum calibrating method pre-insulated pipe outside casing extrusion line PE series vacuum calibrating method pre-insulated pipe outside casing extrusion line
