Automatic 3LPE Coating Pipe Production Line with PLC Control System and 3 Layers Coating

The 3PE/3-Layer PE/Polyethylene Steel Pipe External Anticorrosion Coating Machine/Production Line is designed for applying anti-corrosion coating to steel pipes with larger diameters. This advanced system is widely used in various engineering construction projects, particularly in heating, gas, and oil field applications.

This production line supports multiple coating types including FBE, 2-layer FBE, 2-layer PE, 2-layer PP, and 3-layer PE anti-corrosion coatings. The 3PE anti-corrosion coating consists of three distinct layers: first FBE coating, middle adhesive layer, and outer polyethylene layer.

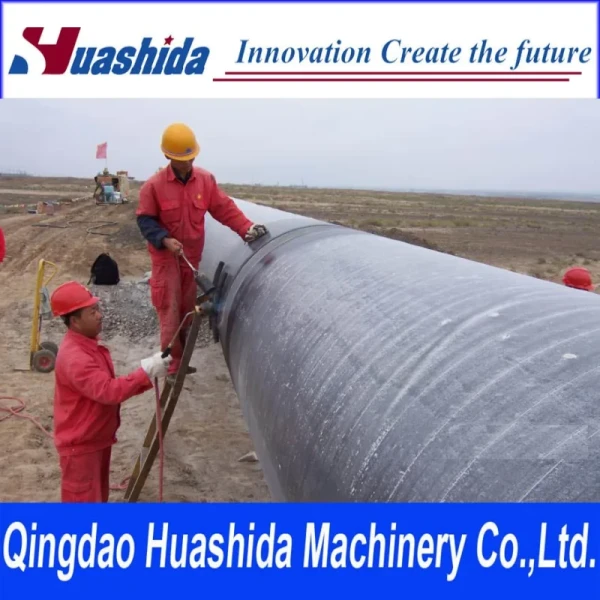

The 3PE anti-corrosion coating represents advanced technology for outer protective layers of buried pipes. It is extensively used in gas and oil transmission pipelines, urban gas supply systems, water supply pipes, and other fluid transmission pipelines. This coating significantly enhances the pipeline's mechanical properties while providing high electrical resistance, waterproofing, wear resistance, and anti-aging performance.

The complete steel pipe 3PE external anti-corrosion coating production line includes the following integrated systems:

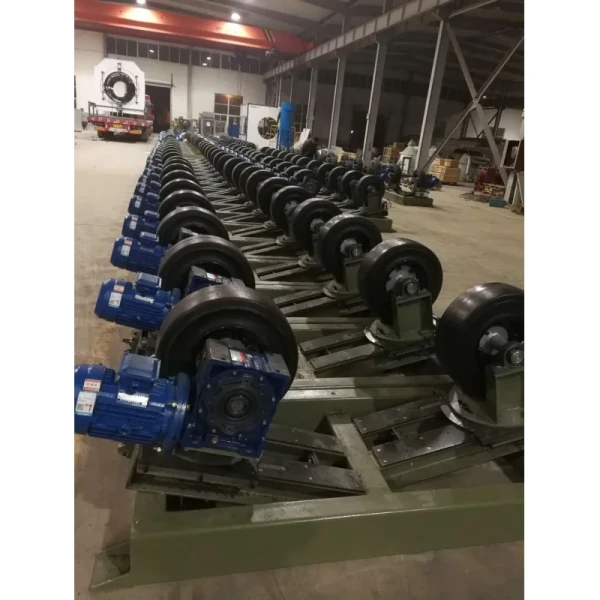

• Steel pipe transmission system
• Surface treatment system
• Pipe dust removal system
• Pipe heating system
• Electrostatic spraying system
• Coating system
• Water cooling system
• End cutting system
• Hydraulic and pneumatic system
• Testing system
• Electronic control system

Upload pipes → Pipes screw conveyor → Rust removal of intermediate frequency heating → Epoxy powder coating → Outer layer solid & polyethylene coating → Cooling spray → Pipes screw conveyor → Grinding pipes, send → Unload pipes

Qingdao Huashida Machinery Co., Ltd. is a specialized manufacturer engaged in the development and production of plastic pipe machinery, municipal pipe equipment, pipe insulation and anti-corrosion systems, as well as pipe jointing and anti-corrosion materials.

• HDPE Jacket Pipe Production Line for Pre-insulated Pipes (Diameter: 110-2000mm)
• Rigid Pre-insulated Pipe Production Line
• Flexible PERT Pre-insulated Pipe Production Line
• Steel Pipe Anti-corrosion Coating Line for FBE, 2LPE, and 3LPE coatings
• Steel Pipe Surface Derusting (Shot Blasting) Line
• PE Pressure Pipe / Water and Gas Supply Pipe Extrusion Line
• PP/PE Plastic Sheet, Board, and Geomembrane Production Line
• NBR/PVC Thermal Insulation Tube and Sheet Production Line
• Pipeline Anti-corrosion Materials & Tools, including:
  • Heat Shrink Joint Coating Sleeves
  • Electrofusion Weldable Joint Sleeves
  • Portable Plastic Welding Guns (Extruders)
  • PE/PP Welding Rods
