Vacuum Calibration HDPE Jacket Pipe Extrusion Line for District Heating Pre-Insulated Pipe
Product Overview

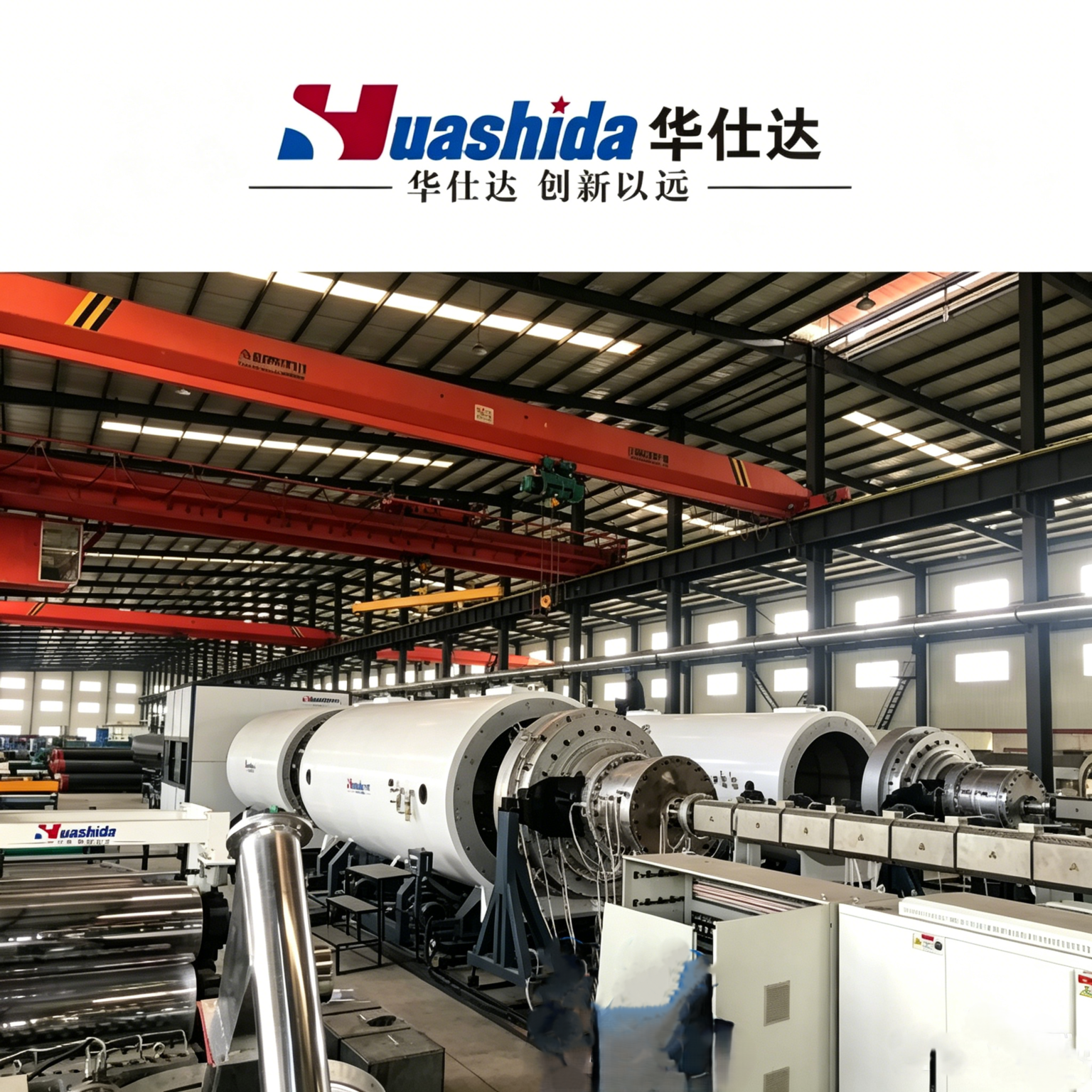

The 110-2200mm Vacuum Calibration HDPE Jacket Pipe Extrusion Line is a high-precision, fully automated pipe extrusion production line purpose-built for manufacturing HDPE protective casing pipe used in PU foam pre-insulated pipeline systems.
At the core of the equipment is a precision vacuum calibration table that sizes each pipe to ± 0.1mm wall thickness tolerance while the HDPE is still molten - the defining technology that separates this line from standard extrusion equipment and ensures a tight, reliable bond with the polyurethane foam insulation layer.
Widely applied across district heating networks, chilled water distribution systems, and buried thermal insulation pipeline projects in Russia, Central Asia, the Middle East, and Africa, this vacuum-calibrated HDPE jacket pipe production line covers 7 standard models, meeting both high-temperature heating (up to 120°C) and low-temperature chilled water pipeline manufacturing requirements from a single flexible platform.
Product Parameters
| Model |
Main Extruder Model |
Pipe Diameter Range (mm) |
Capacity (kg/h) |
Installed Power (kw) |
Length (m) |
| PE-110/500 |
SJ-75/33 |
110-560 |
250-350 |
160 |
26 |
| PE-655/1380 |
SJ-120/33 |
600-1200 |
700-900 |
480 |
36 |
| PE-960/1860 |
SJ-150/33 |
960-1680 |
1000-1200 |
580 |
45 |
| PE-1155/2200 |
SJ-150/33 |
1155-2000 |
1350 |
650 |
45 |
| PE-315/760 |
SJ-90/33 |
315-760 |
400-600 |
280 |
30 |
| PE-450/960 |
SJ-100/33 |
450-960 |
550-800 |
380 |
33 |
| PE-500/1155 |
SJ-110/33 |
500-1155 |
600-900 |
420 |
35 |
Peak output: 1350kg/h (PE-1155/2200 model) - the highest throughput configuration for large-diameter 1155-2200mm district heating and chilled water pre-insulated pipe casing production.
All parameters are for reference only. They can be selected, matched, or modified according to customer-specific district heating and chilled water pipeline production requirements.
Production Line Composition & Process Flow
Key Equipment Configuration
This full-automatic vacuum calibration HDPE jacket pipe extrusion line is the core supporting equipment for PU foam pre-insulated pipe production, delivering integrated, continuous, high-efficiency casing pipe manufacturing with fully customizable configuration:
- Vacuum Loader: Automatic PE particle feeding for stable, continuous material supply in high-output HDPE casing production.
- Hopper Dryer: Removes raw material moisture to stabilize PE melt quality and prevent defective pipe surface.
- High-Efficiency Single Screw Extruder: High-torque extrusion compatible with virgin and recycled PE, sustaining 250-1350kg/h stable output.

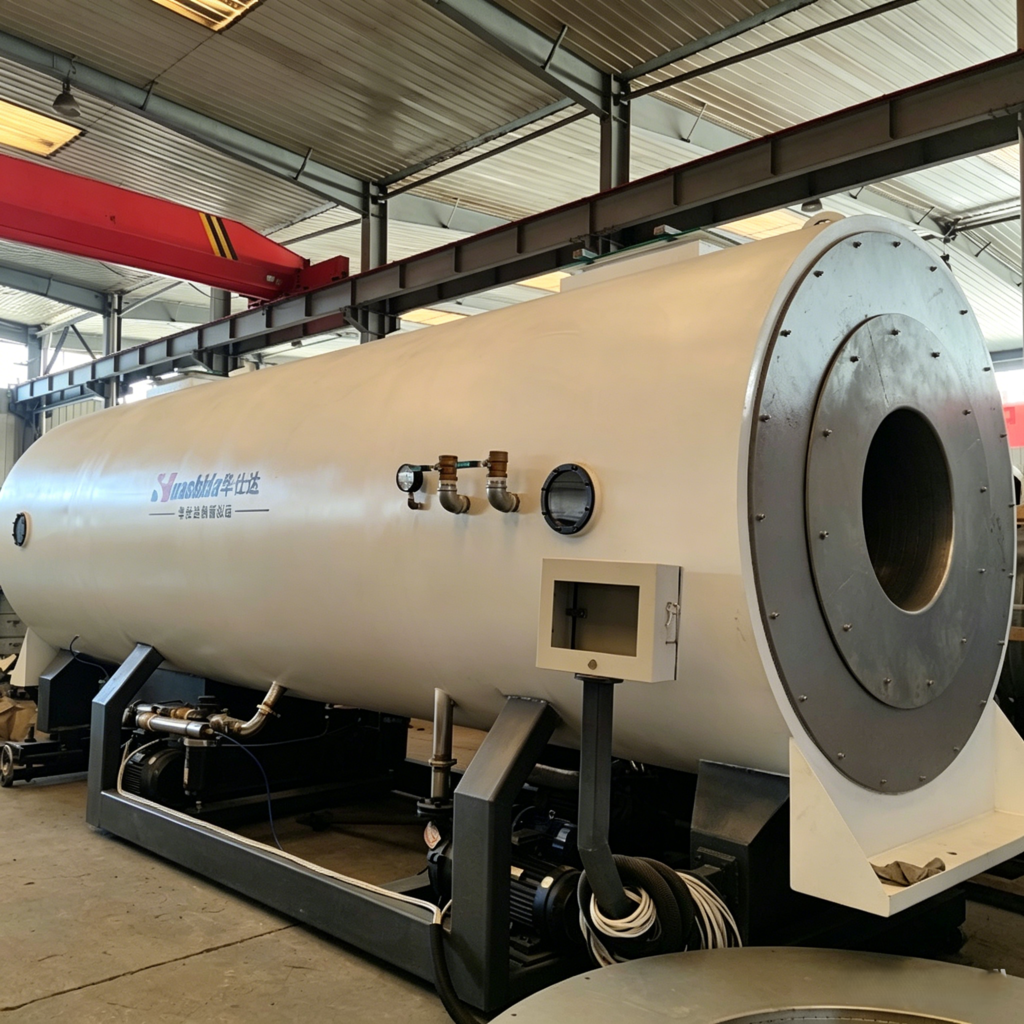

- Precision Vacuum Calibration Table: The system's core technology - professional vacuum sizing achieves ±0.1mm ultra-high dimensional accuracy for a perfect fit with the PU insulation layer.
- Water Spraying Cooling Tank: Multi-stage circulating cooling ensures stable pipe shaping and structural uniformity after vacuum calibration.

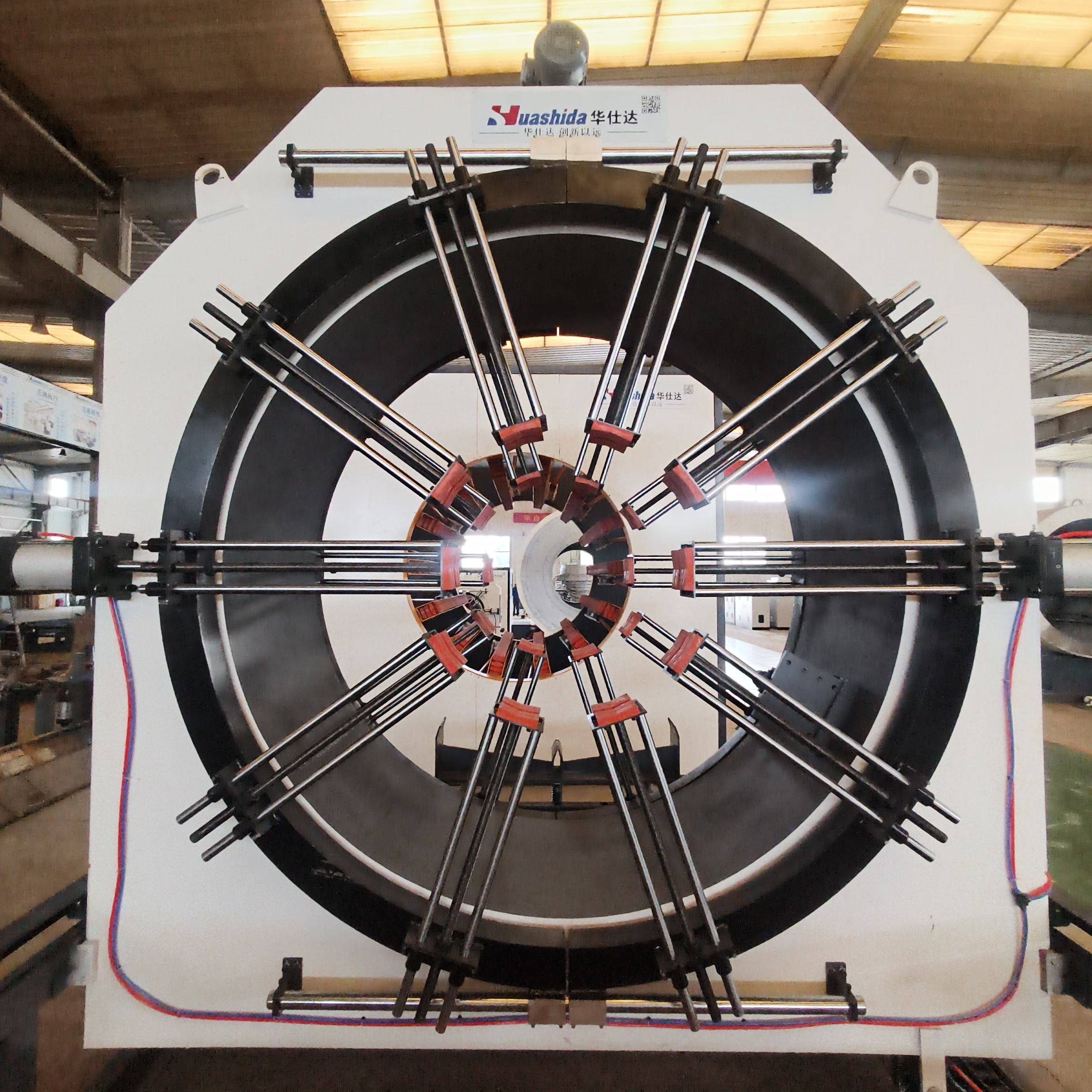

- Synchronized Hauling Machine: Stable traction speed matched to every diameter model for consistent pipe forming quality.
- Dust-Free Planetary Cutting Machine: Chipless, dust-free cutting preserves calibrated dimensions and keeps the workshop clean without secondary cleaning.
- Discharging Frame: Automatic pipe discharging and orderly stacking for convenient storage and transport.
Automated Production Process Flow
The full production process uses one-time forming technology, supporting single-operator intelligent operation with high efficiency and minimal material loss:
Vacuum Material Feeding → Hot Air Drying → PE Extrusion Plasticizing → Mold Forming → Vacuum Precision Calibration (±0.1mm Tolerance) → Water Spray Cooling → Synchronized Hauling → Dust-Free Planetary Cutting → Automatic Discharging
One-time forming eliminates edge-trimming procedures, significantly reducing raw material waste, lowering production cost, and improving overall extrusion efficiency for mass pre-insulated jacket pipe manufacturing.
Core Advantages (Equipment & Service)
Equipment Advantages
- Precision Vacuum Calibration System: ±0.1mm wall thickness tolerance via high-accuracy vacuum sizing, fully meeting EN253 and GB/T29047 international standards and guaranteeing a tight bond between HDPE casing and PU foam insulation.
- Full 110-2200mm Diameter Coverage: 7 standard models span small, medium, and extra-large HDPE jacket pipe, adapting to every specification of district heating and chilled water pre-insulated pipeline without extra equipment investment.
- High-Efficiency Stable Output: Max 1350kg/h throughput solves production bottlenecks and meets large-scale municipal heating and chilled water infrastructure project delivery demands.
- Dust-Free Environmental Protection Cutting: Planetary cutting technology avoids plastic dust pollution, improving workshop safety and reducing post-processing workload.
- Space-Saving Compact Design: 26-45m flexible line layout adapts to different factory workshops, saving floor space without sacrificing output.
- Labor-Saving Full Automation: PLC intelligent centralized control enables single-person operation, reducing manual cost and human error.
- Low Production Cost: Compatible with recycled PE material plus one-time zero-trimming forming, maximizing material utilization and lowering unit production cost.
Service & Technical Advantage
- One-Stop Pre-Insulated Pipe Solution: Customized workshop design, equipment installation, commissioning, and operator training for complete HDPE casing + PU foam pre-insulated pipe production lines.
- Global Proven Project Experience: 389+ vacuum calibration HDPE jacket pipe lines running worldwide, with mature application in heating and chilled water projects across Russia, Central Asia, the Middle East, and Africa.
- Professional R & D Team Support: Backed by a senior engineering team and national high-end machinery expert workstation, delivering personalized technical customization and process optimization.
