The sheet extrusion line is the most complete, high performance, reliable sheet lines. We offer them as complete systems in 3 sizes: With a 65mm, 90mm, or 120mm Single extruder, to produce just the capacity you need.This sheet extrusion line is the best choice for producing various plastic sheets and films, offering high efficiency, stability, and energy-saving features, widely applied in industries such as machinery, chemicals, electronics, and more.
This kind of line is suitable to producePE/PP/PS/HIPS/ABS/PVC single-layer and multi-layer sheet with thickness of 0.1mm to 30mm and width of up to3000mm.
The plastic sheet extrusion lines equipments as below:
Loader & Hopper Dryer
Extruder
Screen Changer
T-Die
Three-Roller Calender
Cooling Device
Edge Cutter
Haul-off System
Plate Cutter/Winder
Electrical Control System
Extruder
Efficient single screw extruder with water-cooling force feeding system, and barrel with grooving in the feeding zone are designed to save power of main motor; Long L/D ratio and mixing head are designed to get perfect jellification and high output.
Die head
The flow channel is designed for smooth flow of the melt without detaining, ensuring uniform sheet thickness.
Three Calender
It has Verical and Oblique structures according to different width of the sheet. Specially designed flow path inside the roll ensures precisely controlling of roller temperature, then ensure flat and brightness of the roller.
Double-station hydraulic screen changer
It adopts a dual-channel and dual-station design, and the die head is equipped with two sets of filtration systems. During normal production, the two networks operate in parallel to share the load. When replacing, switch to single network operation through hydraulic means, and the other network can be replaced without stopping the machine.
Cooling Rack
Aluminum-magnesium alloy cooling idlers ensure a long service life.

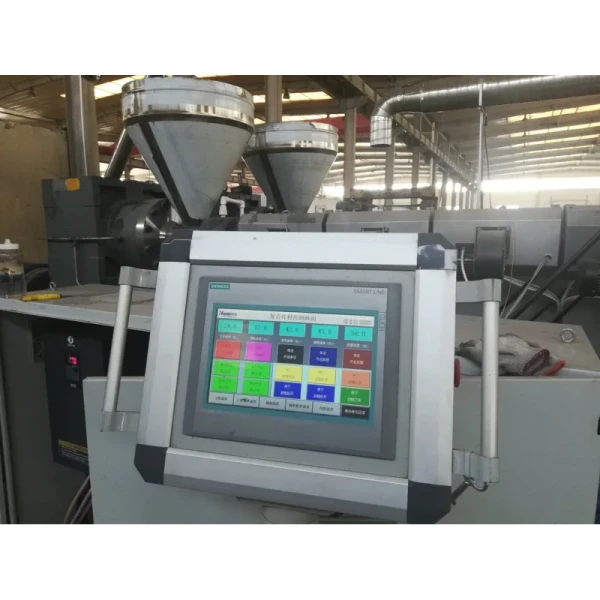

HMI Controlling System
Professional PLC control system, intelligent centralized control.
ABS Sheets: Widely used in the refrigerator industry for components like fridge drawers and gallbladders.
PS Sheets: Primarily used in semiconductor electronics and computer communications.
PE/PP Sheets: Low-density, good sanitation performance, corrosion resistance, and heat resistance, widely used in anti-corrosion materials and container manufacturing.
Industry-Leading Technology: In cooperation with the National Rubber and Plastics Laboratory, with 76 national patents.
Energy-Efficient: Saves electricity and water, reducing energy consumption by 30%.
Intelligent Control System: Uses PLC to save manpower and enhance automation.
Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!
