Vacuum sizing thermal insulation pipe production line

Name: Vacuum sizing thermal insulation pipe production line
Brand: huashida
Price: 120000 USD

Quality Vacuum sizing thermal insulation pipe production line for sale

Certification : iso ce

Model Number : 110-2000mm

MOQ : 1set

Delivery Time : 60-90days

Payment Terms : T/T

Price : 120000-600000$

Supply Ability : 5sets /per month

Brand Name : huashida

Packaging Details : According to customer requirements

Place of Origin : China

Contact Now

The vacuum sizing thermal insulation pipe production line is a new type of pipe production line independently developed by our company after absorbing and digesting German pipe extrusion technology. This complete production unit integrates extrusion, vacuum sizing, cooling, haul-off, cutting and unloading processes into one integrated system.

This plastic pipe production line is mainly composed of 9 parts:

1.1set Auto Vacuum feeder :
2.1set Hopper dryer
3.1set Efficient single screw extruder
4.1set Mould
5.1set Vacuum calibration tank
6.1set Hauling machine
7.1set Cutting machine
8.1set Stacker
9.1set PLC central control system

The machines inclued in the production line can also be customed as your specific requirements.

Main Specifiction:

Style	PE-110/600	PE-365/760	PE-655/1380	PE960-1680
Main extruder	SJ-75/33	SJ-90/33	SJ-120/33	SJ-150/33
Pipe diameter	Φ110-600mm	Φ 365-Φ 760 mm	Φ 655-Φ 1380 mm	Φ 960-Φ1680mm
Capacity	250-300kg/h	400~500 kg/h	850~950 kg/h	900-1100KG/H
Installed power	160kw	420 kw	480 kw	580KW
Length	35m	36 m	40 m	48m

Vacuum sizing thermal insulation pipe production line

Six Major Features of Vacuum Sizing Thermal Insulation Pipe Production Line

1. Advanced German Extrusion Technology Adopted Developed by our company based on imported German pipe extrusion technology after technical digestion and optimization, stable extrusion performance, uniform plasticization of PE raw materials, and consistent pipe wall thickness.	2. Integrated All-in-One Compact Structure The whole line integrates extrusion, vacuum sizing, water cooling, haul-off traction, fixed-length cutting and automatic unloading. Simplified layout, small floor space, easy operation and centralized control.	3. High-Precision Vacuum Sizing System Independent vacuum sizing tank with adjustable negative pressure, stable pipe shaping, roundness error strictly controlled, effectively avoiding pipe deformation, applicable for high-standard thermal insulation jacket pipes.
4. Efficient Multi-Stage Cooling Design Segmented circulating water cooling system with temperature separate regulation. Rapid cooling and forming of extruded pipes, greatly improving production speed without surface wrinkling or shrinkage.	5. Stable Constant-Speed Haul-off & Accurate Cutting Rubber crawler haul-off with large clamping force, no slipping during high-speed operation; servo cutting unit realizes fixed-length precision cutting, neat pipe end without burrs, low material loss.	6. Intelligent Central PLC Control System Equipped with PLC and touch screen operation panel. Real-time display of temperature, speed, vacuum pressure and cutting parameters. Automatic fault alarm, easy parameter adjustment, low labor dependence.

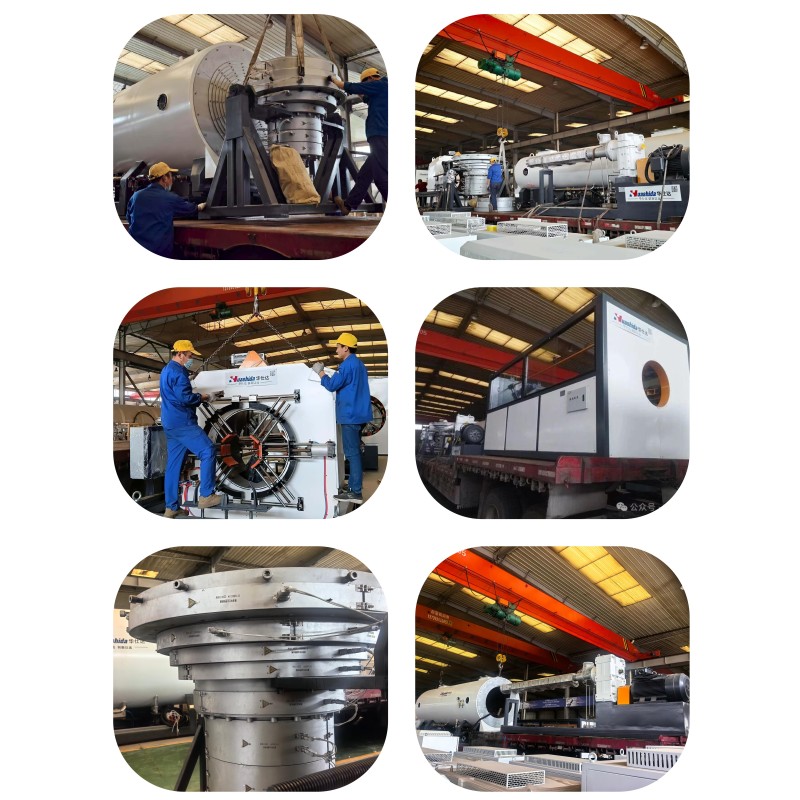

Our facotry
