High-Efficiency PP/HDPE Double Wall Corrugated Pipes Production Line

Place of Origin : QINGDAO,CHINA

Payment Terms : L/C,T/T

Number of Layers : Double Layer

Field : Drainage/Water Supply/Sewage Discharge/Agricultura

Packaging Details : Standard Packing

Model Number : Corrugated Pipe Production Line

Price : US$150,000.00-200,000.00

Supply Ability : 30 Set/Year

Delivery Time : 60DAYS

Brand Name : HUASHIDA

Certification : CE

Material : PP/HDPE

Max Output : 1000kg/H

MOQ : 1

Contact Now

High-Efficiency PP/HDPE Double Wall Corrugated Pipes Production Line

High-Efficiency PP/HDPE Double Wall Corrugated Pipes Production Line

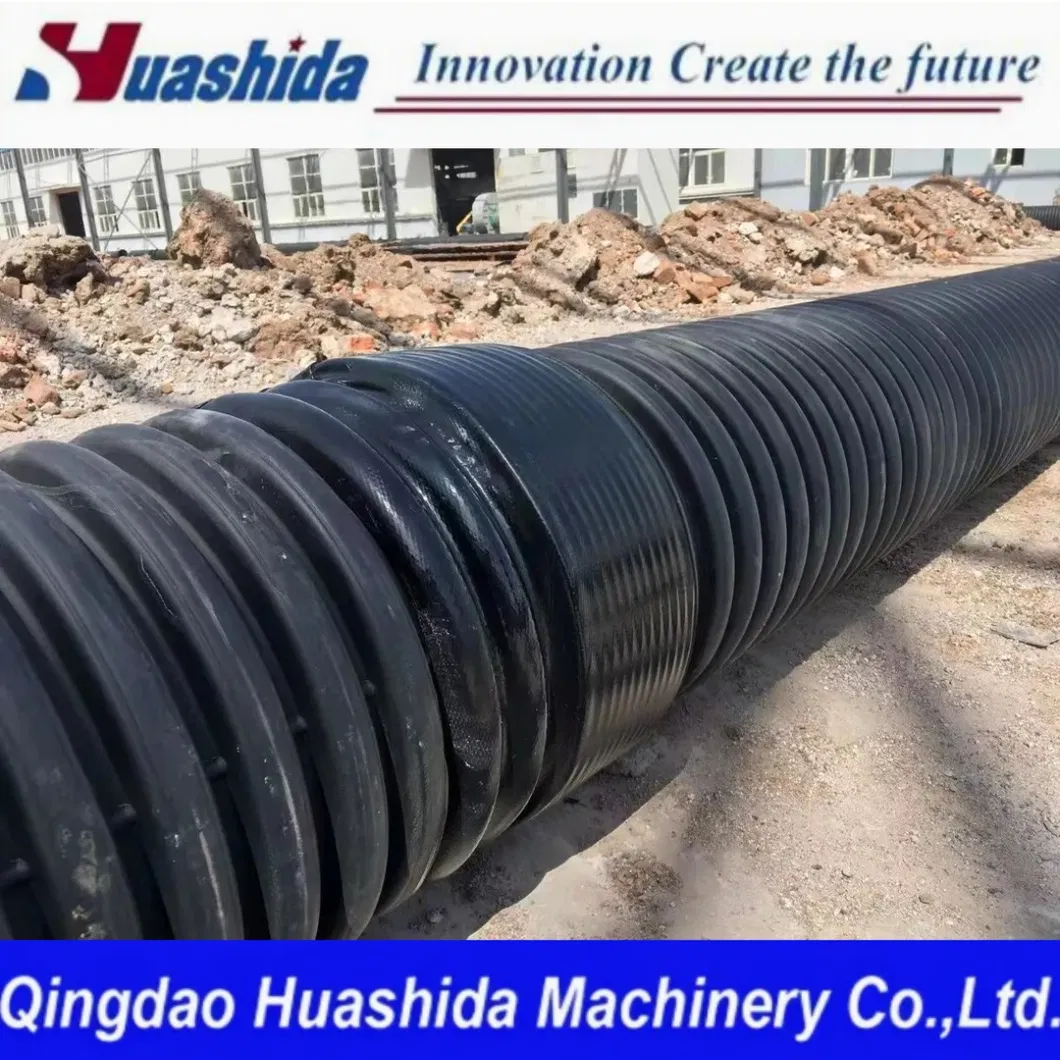

Double Wall Corrugated Pipe Production Line is a new type of high-speed water-cooled corrugated pipe production line developed and designed by ourselves based on advanced foreign technology. Mainly using polypropylene (PP) or high-density polyethylene (HDPE) as raw materials. Production of single and double wall corrugated pipes. Due to its unique structure, this pipe has the advantages of light weight, good impact resistance, strong corrosion resistance, and cold and heat resistance. It is widely used in urban drainage (water supply), geographical infiltration, construction water supply and drainage, PEF, wire and cable laying, bridge steel cable sheath, agricultural irrigation, and other fields.


High-Efficiency PP/HDPE Double Wall Corrugated Pipes Production Line



The DWCP series high-speed corrugated pipe forming machine adopts a closed water-cooled structure, and the mold base drives the left and right modules to move within the closed curve. The mold base adopts a gear dynamic structure, which has the advantages of automatic compensation for mechanical wear, smooth operation, low noise, long service life, and highsynchronization. The unique design of the circulating water circuit has high reliability, good cooling effect, and low water impact in the pipeline, which improves the reliability of continuous production of pipes and ensures the surface forming quality of pipes.


Double-Wall Corrugated Pipe Production Line Components

Component Description
Extruder Single-screw extruder: Simple structure, lower cost, suitable for applications with relatively low production requirements. Twin-screw extruder: Provides excellent plasticizing and mixing performance with stable extrusion, making it suitable for higher production efficiency.
Corrugator Equipped with corrugated forming modules to ensure continuous and stable pipe forming. Provides the necessary vacuum and cooling functions during the corrugation process.
Cooling System Supports water cooling, air cooling, or a combination of both. Water cooling provides higher cooling efficiency and faster temperature reduction, while air cooling features a simpler structure and lower cost.
Cutting Equipment Planetary cutter or fully automatic corrugated pipe cutter precisely cuts the finished pipe, providing high cutting accuracy and smooth cutting edges.
Control System PLC control system enables precise control and coordinated operation of all major production line components, ensuring stable and efficient production.


High-Efficiency PP/HDPE Double Wall Corrugated Pipes Production Line
High-Efficiency PP/HDPE Double Wall Corrugated Pipes Production Line
Application:
It is widely used in urban water supply and drainage, underground infiltration, construction water supply and drainage, wire and cable laying, bridge steel cable sheathing, agricultural irrigation and other fields. It will gradually replace the plastic pipe, cement pipe, cast iron pipe due to low assembly cost, easy operation, convenient connection and economical construction. It enjoys broad application prospects and great market potential.
Product Parameters
Model Diameter Range (mm) Max. Capacity (kg/h) Power Consumption (kW)
S-55/30 Φ10 - Φ32 80 40
S-65/30 Φ20 - Φ63 120 55
S-75/33 Φ50 - Φ160 250 85
S-90/33 Φ75 - Φ250 300 110
S-90/33 Φ110 - Φ315 400 130
S-120/33 Φ250 - Φ630 800 300
S-150/33 Φ315 - Φ800 1100 380
S-120/38 Φ710 - Φ1200 1300 480
High-Efficiency PP/HDPE Double Wall Corrugated Pipes Production Line
High-Efficiency PP/HDPE Double Wall Corrugated Pipes Production Line


High-Efficiency PP/HDPE Double Wall Corrugated Pipes Production Line
High-Efficiency PP/HDPE Double Wall Corrugated Pipes Production Line


Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!

Our Main Products Include:
HDPE Jacket Pipe Extrusion Line
3LPE Steel Pipe Anti-Corrosion Coating Line
Hollow Wall Spiral Pipe Production Line
Double Wall Corrugated Pipe Production Line
PE/PP Geo Membrane Production Line
PE/PP Sheet Board Extrusion Line
Rubber Foam Insulation Pipe Production Line
HDPE Welding Wire Welder Rods
