Large Diameter HDPE/PP Double Wall Corrugated Pipe Extrusion Line
Product Description
The Double Wall Corrugated Pipe Production Line is a high-speed, water-cooled corrugated pipe extrusion system independently developed and designed by Huashida based on advanced foreign technology. It primarily uses polypropylene (PP) or high-density polyethylene (HDPE) as raw materials to produce both single-wall and double-wall corrugated pipes.
Thanks to its unique structural design, the pipe offers significant advantages, including light weight, high impact resistance, excellent corrosion resistance, and strong resistance to both cold and heat. It is widely used in urban drainage (water supply), geotechnical drainage, building water supply and drainage, power and communication cable protection (PE for wire and cable laying), bridge steel cable sheathing, agricultural irrigation, and other related fields.
Product application range:
- Municipal engineering, underground buried rainwater and sewage discharge in residential areas;
- Agricultural irrigation and drainage;
- Drainage and transportation of sewage treatment plants and garbage disposal sites;
- Chemical ventilation pipes and fluid transportation in chemical and mining industries
- Power and communication cable protection casings, etc.

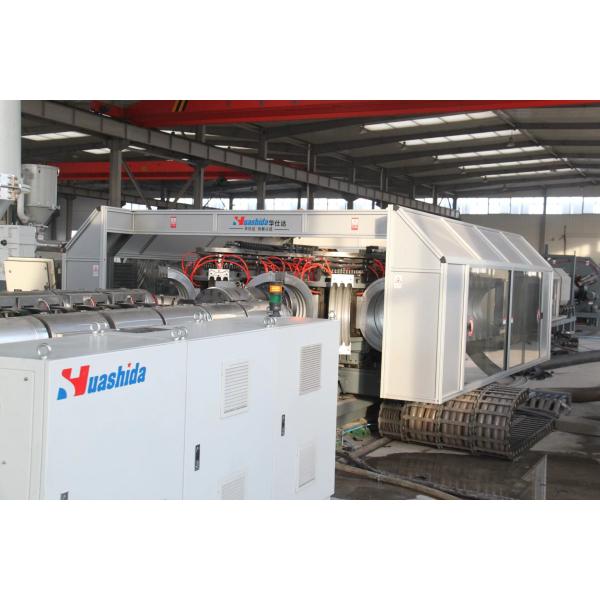

The DWCP series high-speed corrugated pipe forming machine adopts a closed water-cooled structure, and the mold base drives the left and right modules to move within the closed curve. The mold base adopts a gear dynamic structure, which has the advantages of automatic compensation for mechanical wear, smooth operation, low noise, long service life, and high synchronization. The unique design of the circulating water circuit has high reliability, good cooling effect, and low water impact in the pipeline, which improves the reliability of continuous production of pipes and ensures the surface forming quality of pipes.
Detailed Photos
Product Parameters
| pipe |
|
Extruder |
|
Corrugator |
|
Maximum speed |
| style |
DN |
Model |
Capacity |
series |
mold block qty |
m/min |
| PP/PE double wall corrugated pipe |
ID-200-600 |
SJ-90*36/SJ-75*36 |
600kg/h |
DWCP-600 |
36 |
6 |
| ID 600-1000 |
SJ-120*36/Sj-90*36 |
1000kg/h |
DWCP-1000 |
39 |
12 |
Certifications
This professional large diameter steel pipe anti-corrosion coating line is certified with authoritative CE and ISO international quality system qualifications, complying with global pipeline anti-corrosion engineering specifications.
As a certified Shandong Provincial First-set Technical Equipment, all equipment undergoes strict factory testing and third-party independent inspection, supporting global project bidding and quality verification for overseas buyers.
Service & Support
Huashida offers full-link turnkey export services for global industrial buyers. The equipment comes with a 12-month comprehensive warranty for mechanical parts and complete after-sales guarantee.
Professional free operator training, overseas on-site installation, equipment commissioning, and long-term remote technical guidance are provided. Customized configuration including pipe diameter adaptation, choice of FBE powder or varnish paint coating medium, coating thickness adjustment, and production speed optimization is available to fit personalized project requirements.
With 21+ years of professional pipeline anti-corrosion equipment manufacturing experience, the brand supports stable mass equipment supply and reliable after-sales service worldwide.
