PLC Controlled Automatic 3LPE Coating Pipe Production Line with Shot Blasting Surface Preparation

Name: PLC Controlled Automatic 3LPE Coating Pipe Production Line with Shot Blasting Surface Preparation
Brand: Huashida
Price: 150000 USD

Quality PLC Controlled Automatic 3LPE Coating Pipe Production Line with Shot Blasting Surface Preparation for sale

Brand Name : Huashida

Model Number : 001

Certification : CE, ISO, RoHS, REACH

Place of Origin : China

MOQ : 1 set

Price : 150000-1000000

Payment Terms : T/T,Western Union,D/A

Supply Ability : 5-10 +sets+per mouth

Delivery Time : 60work days

Packaging Details : Container loading，sea transportation

Coating Layers : 3 Layers

Control System : PLC

Pipe Surface Preparation : Shot Blasting

Origin : China

Connection Type : Welding

Operating Mode : Automatic

Coating Structure : Fbe, 2lpe, 3lpe

Coating Type : Internal, External

Heating Method : Induction Heating

Contact Now

Product Description

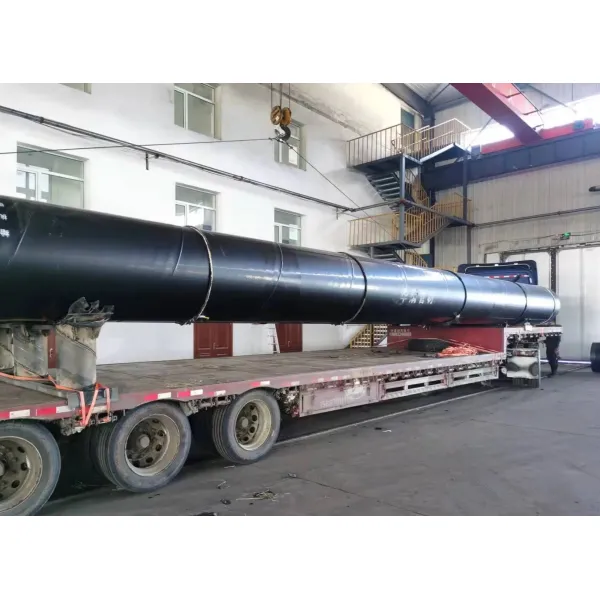

3 Layer Polyethylene (3LPE) Anti-Corrosion Steel Pipe Production Line for Oil & Gas

The 3-layer polyethylene (3LPE) anti-corrosion steel pipe production line is designed to apply a high-performance three-layer protective coating to steel pipes. By integrating advanced coating technology with high-quality materials, the system ensures reliable and long-lasting corrosion protection for pipelines used in demanding environments.

The coating structure produced by the line consists of three functional layers:

Base Layer: Fusion bonded epoxy (FBE) powder coating is applied to the surface of the steel pipe, forming a strong bond and providing excellent corrosion resistance.

Middle Layer: A copolymer adhesive layer with functional groups is applied to firmly bond the epoxy base layer with the outer polyethylene layer.

Outer Layer: High-density polyethylene (HDPE) is extruded as the outer protective layer, offering strong mechanical protection, low water absorption, and excellent environmental resistance.

Through this three-layer coating process, the production line ensures uniform coating quality, enhanced pipeline durability, and extended service life.

PLC Controlled Automatic 3LPE Coating Pipe Production Line with Shot Blasting Surface Preparation

Our Advantages

High Sealing Performance: The coating system provides excellent sealing capability. During long-term operation, it helps reduce energy loss, lower operating costs, and minimize environmental impact.

Outstanding Corrosion Resistance: The 3LPE coating offers strong protection against corrosion. It features a simple and efficient application process and provides a long service life of 30–50 years.

Excellent Low-Temperature Performance: The coating maintains strong corrosion resistance and impact resistance even in low-temperature environments, ensuring reliable pipeline protection.

Optimized Material Structure: By combining the high bonding strength of epoxy powder, the low water absorption of polyethylene, and the flexibility of hot-melt adhesive, the coating system achieves excellent durability and reliability.

Cost-Effective Solution: The production process is efficient and stable, delivering superior anti-corrosion performance with high cost-effectiveness while meeting international standards.

Technological processes

Upload pipes→pipes screw conveyor→rust removal → intermediate frequency heating→Epoxy powder coating→outer layer adhesive polyethylene coating→cooling spray→pipes screw conveyor→grinding pipe ends→dowload pipes

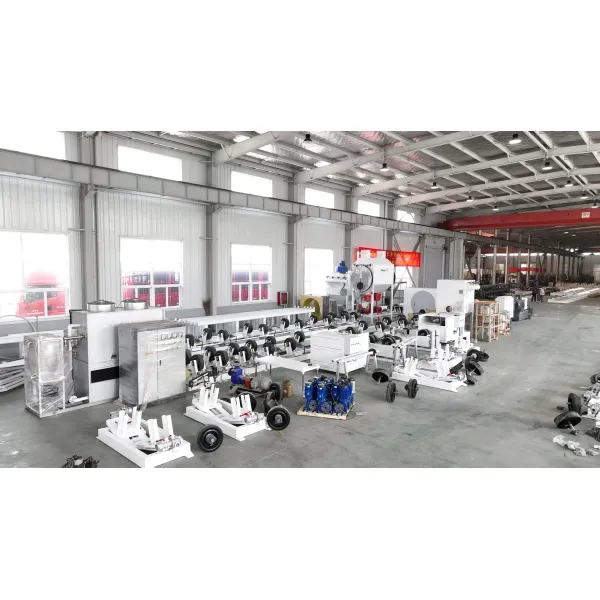

Product Parameters

No.	Name	Specification
A. Surface Cleaning Equipment
1	Steel pipe conveyor	Adjustable speed and angle, pipe uploading and unloading controlled by PLC
2	Shot blasting machine
3	Cyclone dust collector	High efficient downwind cyclone dust removal
4	Impulse cartridge dust collector
5	Centrifugal fan
6	PLC control system	Automatic control of the line
B. Coating Equipment
1	Spiral pipe conveyor	Adjustable speed and angle
2	Induction heating machine
3	Powder spraying device	Spraying thickness 80-800μm
4	Automatic feeder&dryer
5	SJ-65/30 Extruder
6	SJ-180/30 Extruder

7	Adhesive extruder die mould	High quality die steel
8	PE sheet extruder die mold	High quality die stee
9	Adhesive/PE sheet coating device	Pressing roller with silicon coating and internal cooling
10	Environmental Protection Ventilation equipment
11	Cooling Spray equipment
C.Platform Equipment
1	Steel pipe platform	High quality
D.Groove Equipment
1	PE Beveling Machine	Steel brush disk,
2	Hydraulic Lifting and Turning Machinery	For lifting and turning the pipe
3	Hydraulic Equipment

Application

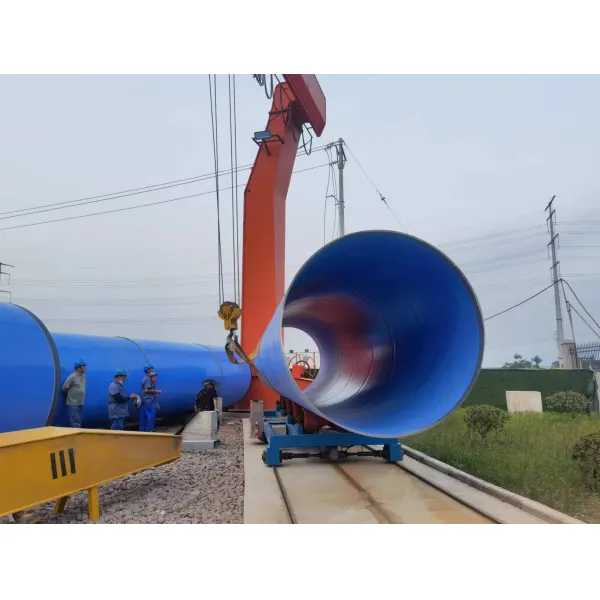

3LPE anti-corrosion coating is an ideal outer protective layer for buried pipelines and is widely used in:

Oil and gas transportation: natural gas and oil long-distance pipelines.
Urban gas supply: urban gas pipeline network.
Water supply pipeline: urban and industrial water supply system.
Other fluid transportation: chemical, sewage treatment and other pipeline systems.
Performance improvement: high electrical insulation, waterproof, wear-resistant, anti-aging, and enhanced pipeline mechanical properties.

Company Profile

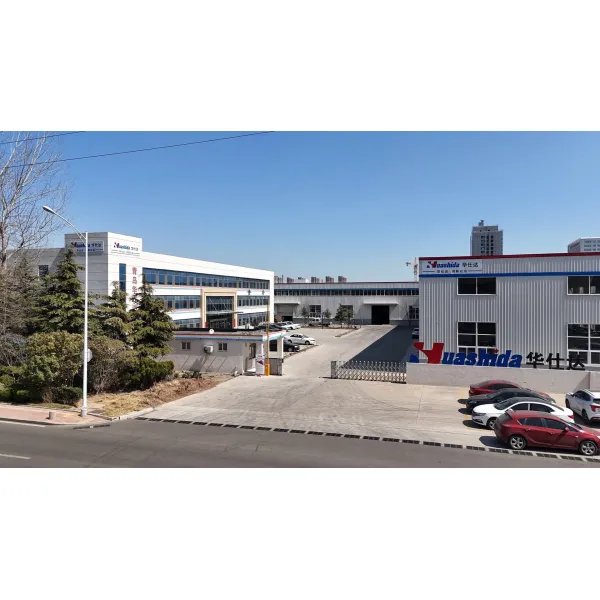

Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!
