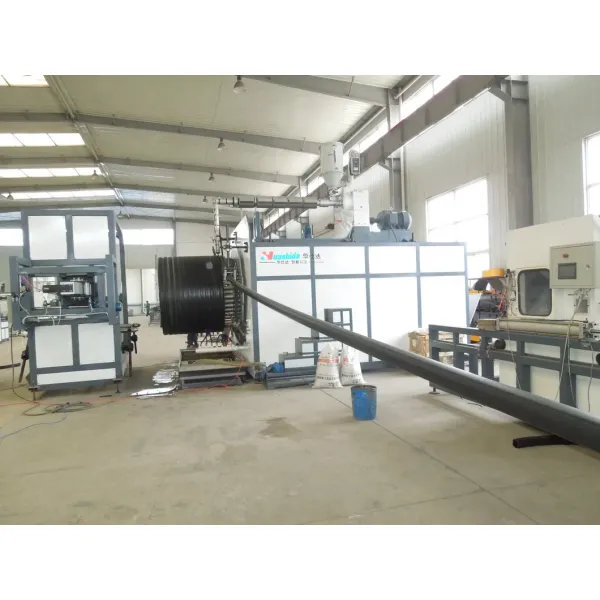

Efficient Production Line for HDPE Double Corrugated Pipes
Product Overview
HDPE Hollow Wall Corrugated Pipe/Structured Wall Pipe produced by this line features high ring stiffness, high impact intensity, and low weight due to its unique structure. Additional advantages include excellent creep deformation resistance, outer pressure resistance, erosion resistance (to acid, alkali, salt, etc.), and an approximate 50-year service life.
Qingdao Huashida Machinery Co., Ltd.'s winding pipe production line incorporates the latest domestic and international technologies, capable of producing pipes with diameters ranging from 200 to 5000 mm.
This equipment is widely used for sewerage and drainage in municipal applications, effectively replacing cement pipes, cast iron pipes, and other traditional piping systems. Its low assembly cost, easy operation, simple connection, and economical construction make it highly promising with significant market potential.
Production Process
Raw materials → Mixing → Vacuum feeding → Material drying → Single screw extrusion → Calibration → Spray cooling → Traction → Single screw glue extrusion → Winding and forming → Water cooling → Cutter → Pipe bracket → Inspecting & packing
Product Parameters
| Model |
Pipe Diameter (mm) |
Extruder |
Velocity |
Max. Output |
Installed Power |
Dimension |
| SKRG-1200 |
Ø400-Ø1200 |
SJ-65(50)X30 |
1-12m/h |
320kg/h |
230KW |
26X18X5 |
| SKRG-1600 |
Ø800-Ø1600 |
SJ-80(50)X30 |
1-6m/h |
500kg/h |
310KW |
27X18X5 |
| SKRG-2200 |
Ø1000-Ø2200 |
SJ-90(65)X30 |
0.5-5m/h |
650kg/h |
380KW |
28X19X5 |
| SKRG-3000 |
Ø1600-Ø3000 |
SJ-90(65)X30 |
0.3-3m/h |
800kg/h |
390KW |
48X26X6 |
Equipment Composition
- Single screw extruder with vacuum loader & hopper dryer
- Square tube die head & mould
- Vacuum calibration table
- Water spraying tank
- Hauling machine
- Single screw extruder with vacuum loader & hopper dryer
- Melt adhesive extrusion die head
- Rewinding forming machine
- Cutting machine
- Stacker
- PLC
Complete Production Line Structure
Part 1: PE Pipe Extrusion Line - Extrudes PE/PP Square Shaped Pipe according to customer requirements:
- Single Screw Extruder
- Die Head (mold and mandrill)
- Calibrator
- Vacuum calibration & cooling Tank
- Spray Cooling Tank
- Haul-off
Part 2: Spiral Forming Line - Forms and welds the large pipe:
- Single Screw Extruder
- Die Head
- Spiral forming unit
- Cutter
- Bracket
