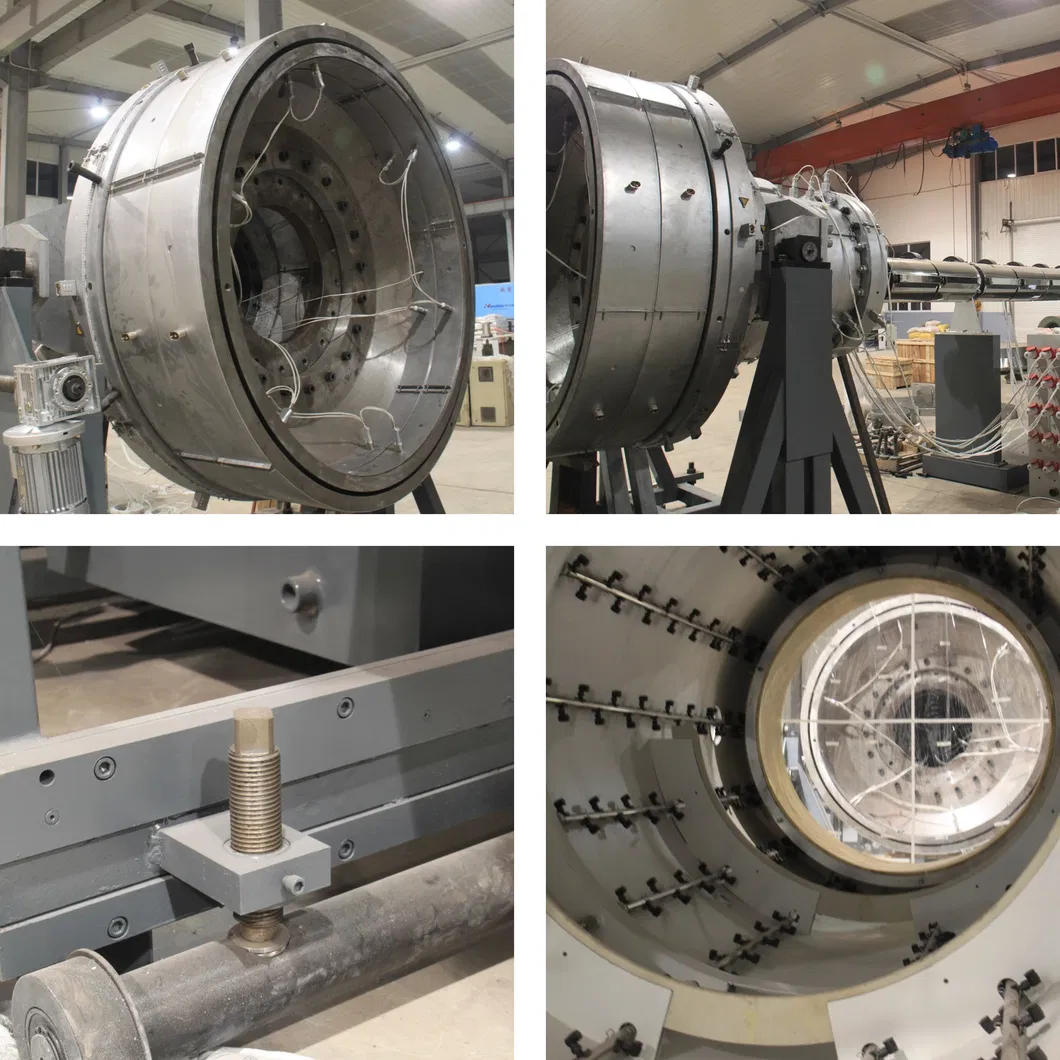

High Efficiency Computerized PE Jacket Pipe Production Machine with Dust-Free Planetary Cutting for PUF Pre-Insulated Pipes

PE-Vacuum Calibration Insulation Pipe Production Line
This advanced machinery is widely recognized for producing pre-insulated pipes used in energy-saving trenchless pipeline installations. These pipes feature rigid polyurethane foam (PUF) insulation within a protective outer casing, ideal for heating networks with a working pressure of 1.6 MPa and water temperatures up to 403°K (130°C), with short-term tolerance up to 423°K (150°C).
The "pipe-in-pipe" structure consists of:

Carrier Pipe: Steel or galvanized steel.
Insulation Layer: Polyurethane foam (PUF).
Outer Casing: High-density polyethylene (HDPE) for underground installations or galvanized steel for above-ground applications.

Advantage

Enhanced Reliability: The PUF insulation system ensures durability and operational efficiency.
Remote Monitoring: Integrated condition monitoring allows early detection and repair of coolant leaks, preventing accidents common in other thermal network designs.
Energy Efficiency: Optimized for trenchless laying, reducing installation costs and environmental impact.
High Performance: Superior stiffness, pressure resistance, and surface quality due to vacuum calibration technology.

Company Overview

Qingdao Huashida Machinery Co., Ltd. is a professional manufacturer specializing in plastic pipe production lines and pipeline anti-corrosion equipment, with over 21 years of industry experience.

We focus on providing efficient, reliable, and intelligent pipeline solutions for global customers in energy, municipal engineering, and infrastructure sectors.

What We Do

We design and manufacture a full range of equipment and materials, including:
1 HDPE jacket pipe extrusion lines for pre-insulated pipes (110–2000 mm)
2 Rigid and flexible pre-insulated pipe production lines (PU / PERT)
3 Steel pipe anti-corrosion coating lines (FBE / 2LPE / 3LPE)
4 Steel pipe shot blasting and derusting lines
5 PE water supply and gas pipe extrusion lines
6 PP/PE sheet, board, and geomembrane production lines
7 NBR/PVC thermal insulation tube and sheet lines
8 Pipeline jointing and anti-corrosion materials

Our Strengths

1 20+ years of manufacturing experience
2 Advanced technology integrated with European standards
3 Strong R&D capability and customized solutions
4 Stable quality with long service life
5 One-stop service from design to after-sales support
