High-Efficiency Computerized Customized Pre-Insulated Pipe Production Line for HDPE Pipejackets

Pre-Insulated Pipe Black HDPE Thin Wall Casing Jacket Pipe Extruder Machine
It is high-efficiency equipment with high speed and energy saving for producing HDPE pipe used as protective cover of PU foam thermal Pre-insulated Pipe.
It is small in size, easy to operate with the automatic control system and has a long service life.

Production line composition:
-1set Vacuum loader
-1set Hopper dryer
-1set High-efficiency single screw extruder
-1set Vacuum calibration table
-1set Water spraying tank
-1set Hauling machine
-1set Cutting machine
-1set Discharging Frame

---High-efficiency extruder gives larger output, stable performance.
---Pipe wall is average and smooth, to reduce waste of raw material, and pipe thickness is adjustable.
---No need trim edge, once forming.
---High degree of automation, can be operated by one person, saving labor costs.

High-efficiency single screw extruder

Single screw is with barrier & mixing head; new model barrel with slotting (channel), Both make the security of good plasticization, large output and stable performance.

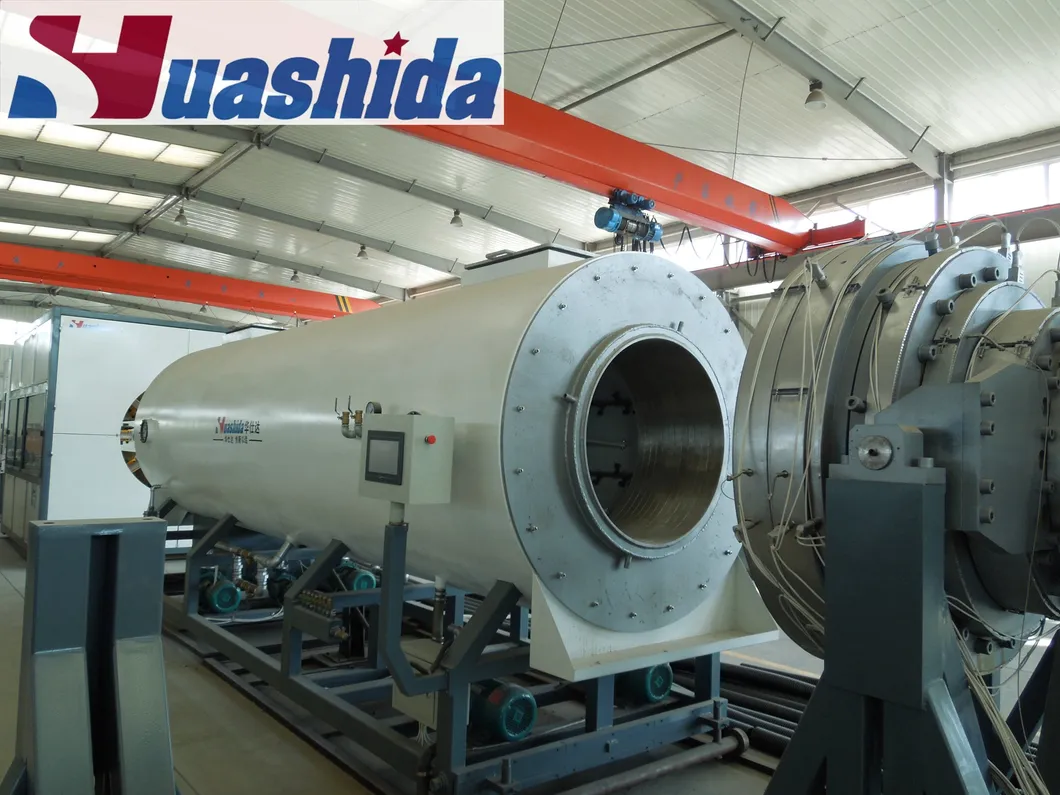

Vacuum Calibration Tank

Vacuum calibration tank is mainly composed of frame, stainless steel tank, vacuum system, spray cooling system, position adjustment device. The vacuum pump exhausts the air from the sealed tank to pressurize the fresh pipe cling to calibrating copper sleeve and to calibrate the outer diameter. Spray nozzles spray cooling water from all directions on pipe surface to cool down the pipe promptly.

Haul-off Machine

Haul-off machine is mainly composed of driving device, track, clamping structure, adjusting system, side plate and foundation bed. Haul-off tracks are driven by AC motor with frequency conversion control to adapt to different extrusion speed.
Automatic length measuring device realizes cutting at a set length.

No-Dust Cutter

It adopts blade punching principle to realize no-dust cutting. It is mainly composed of cutting device, clamping device, structure synchronous movement device and frame.

Discharging Frame

The table surface is made of stainless steel. It adopts pneumatic overturn and discharging automatically.

Qingdao Huashida Machinery Co., Ltd. has been engaged in the development and producing of pipeline anti-corrosion equipment and raw materials since 2003. It is a leader manufacturer of heat-shrinkable sleeve and equipment in China. Huashida brand is favored by domestic and foreign customers. Devices of the equipment design have our patents. We passed ISO9001, ISO14001Environment, ISO45001 health certification. Up to now, more than 500 sets of production lines have been exported to Russia, Kazakhstan, Belarus, Egypt, Iran, Indonesia and other countries. Huashida brand heat shrinkable sleeve equipment in the production process of continuous summary and update has launched the fourth generation of products. The whole production line has reasonable design, intelligent operation, high speed and high efficiency, energy saving and electricity saving material labor cost. Continuous improvement in component design ensures uniform thickness, improved shrinkage, tensile strength and elongation at break. Product quality to meet the needs of different pipeline anti-corrosion demand. We have a professional after-sales service team to provide on-site and online video teaching and training. Help customers solve production problems as soon as possible.
